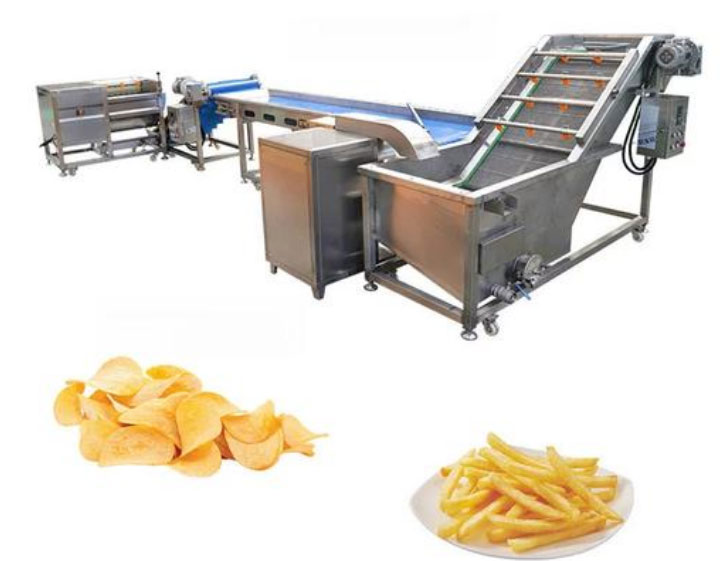

Product 200kg fried potato chips production line
Product 200kg fried potato chips production line
Product application and usage:

Wash and peel---choose---section----Rinse ---Bleaching and ironing---Dry water---Fried---Drain oil--dry beside or over a fire--to flavor---packing

  • Model: /
  • Capacity: /
  • Voltage: /
  • Material: SS304
  • Dimension: /
  • Weight: /
  • Product description


    Chip processing flow:

    Wash and peel---choose---section----Rinse ---Bleaching and ironing---Dry water---Fried---Drain oil--dry beside or over a fire--to flavor---packing


    Product parameter


    Device   name

    Power   equipment

    Dimension

    remarks

    Lifting   machine

    0.75kw/380v

    3000*650*1500mm

    Equipment   304 material

    Variable

    frequency

    speed regulating motor

    Mesh belt for food grade PVC net belt



    Wash   and peel

    3kw/380v

    2880*800*1400mm

    The   effective size of 2500mm, composed of 9 brush roller rotating friction is   peeled potatoes, peeled sweet potatoes the best cleaning equipment

    Picking   line

    0.75kw/380v

    4000*800*1100mm

    Split   picking conveyer

    Lifting   machine

    1.1kw/380v

    3000*700*1800mm


    Article/Slice rinse integrated machine

    5.5kw/380v



    4500*750*1700mm

    Slicing machine using Usa Inc technology, each hour slice up to   1500kg



    Equipped with vortex pump cleaning items



    Bleaching   and ironing



    Electric heating power:96kw

    4000*750*1200mm

    Optional   heating mode: electric heating, coal-fired, gas

    The   wind blowing water

    6.6kw

    4000*750*1300mm

    Flip   type wind Lishui, double row a total of 8 wind turbine wind water snail



    Frying   machine

    Electric heating240kw

    6000*750*2200mm



    The equipment is equipped with a lifting motor, conveying mesh belt,   equipped with oil storage tank and oil filter system, automatic temperature   control



    Alternative heating methods: gas, electricity, coal

    Air   cooling

    6.6KW/380V



    4000*1000*1500mm


    Lifting   machine

    0.75kw/380V



    2500*850*1200mm


    Drum   seasoning

    2.2kw/380v

    2400*900*1800mm

    Drum   seasoning line

     direct   fired dryer

    12KW/380v

    4200*1000*1800mm

    Drying fries

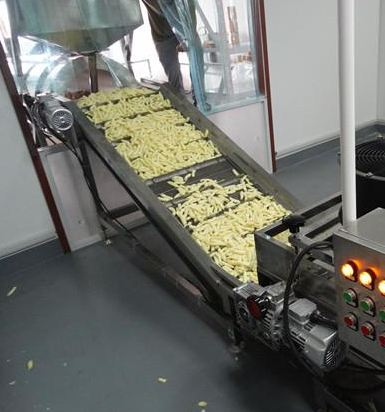

    Product picture
