Customer demand is our pursuit
This machine is suitable for filtering and separating juice from pomace, it is also suitable for separating lees liquid in the brewing industry.
Product description
Function:
This machine is suitable for filtering and separating juice from pomace, it is also suitable for separating lees liquid in the brewing industry.
we have capacity 2-3ton/h, 6-7ton/h, 10-11ton/h
Product parameter
Model | TPP-FL1 | TPP-FL2 | TPP-FL3 |
Capacity | 2-3t/h | 6-7t/h | 10-11t/h |
Power | 1.1kw | 3kw | 5.5kw |
Rotation speed | 1440r/min | 1440r/min | 1440r/min |
Dimension | 950*480*920mm | 1200*570*1070mm | 1700*700*1200mm |
weight | 200kg | 350kg | 450kg |

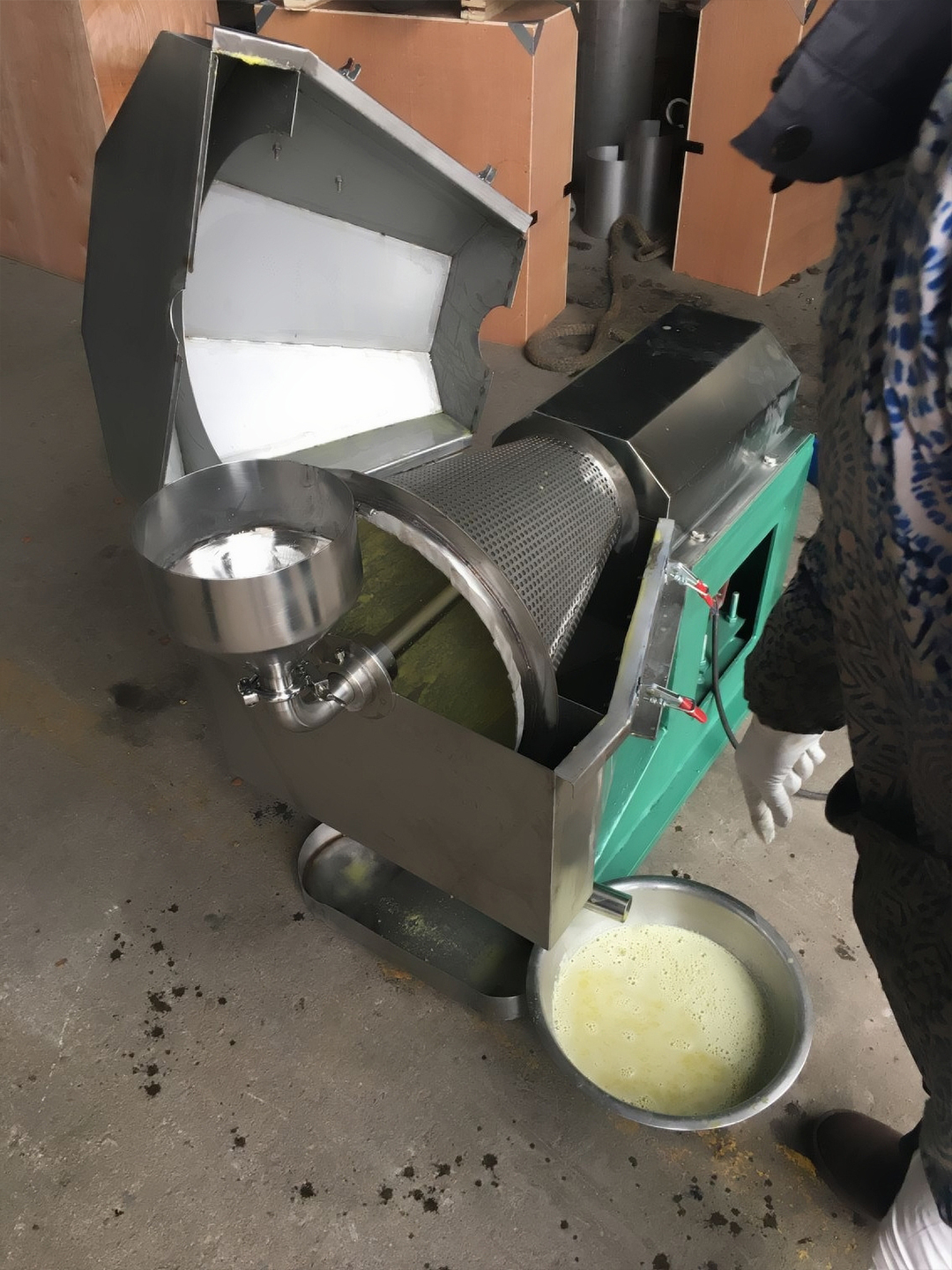

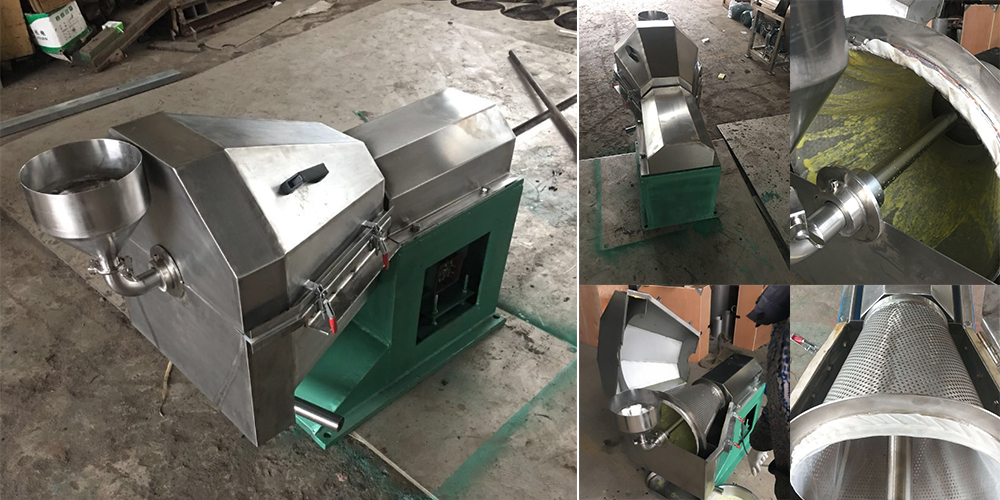

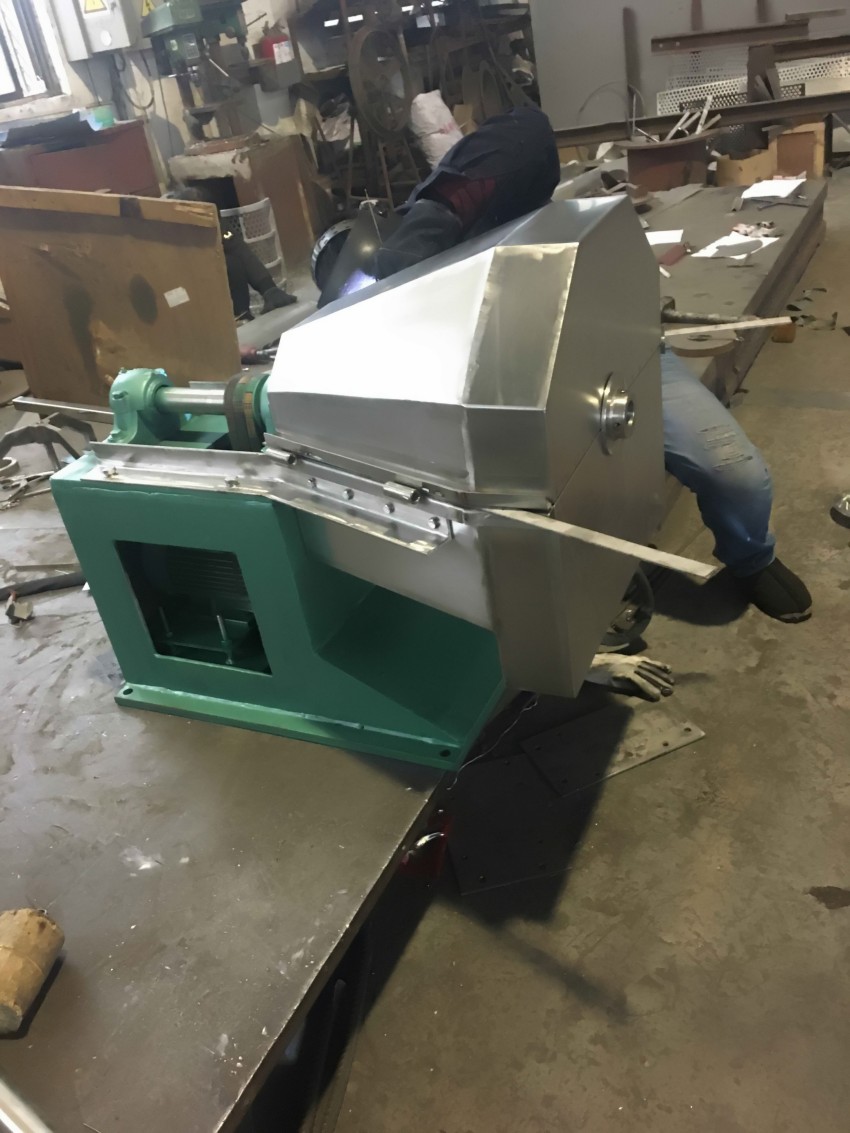

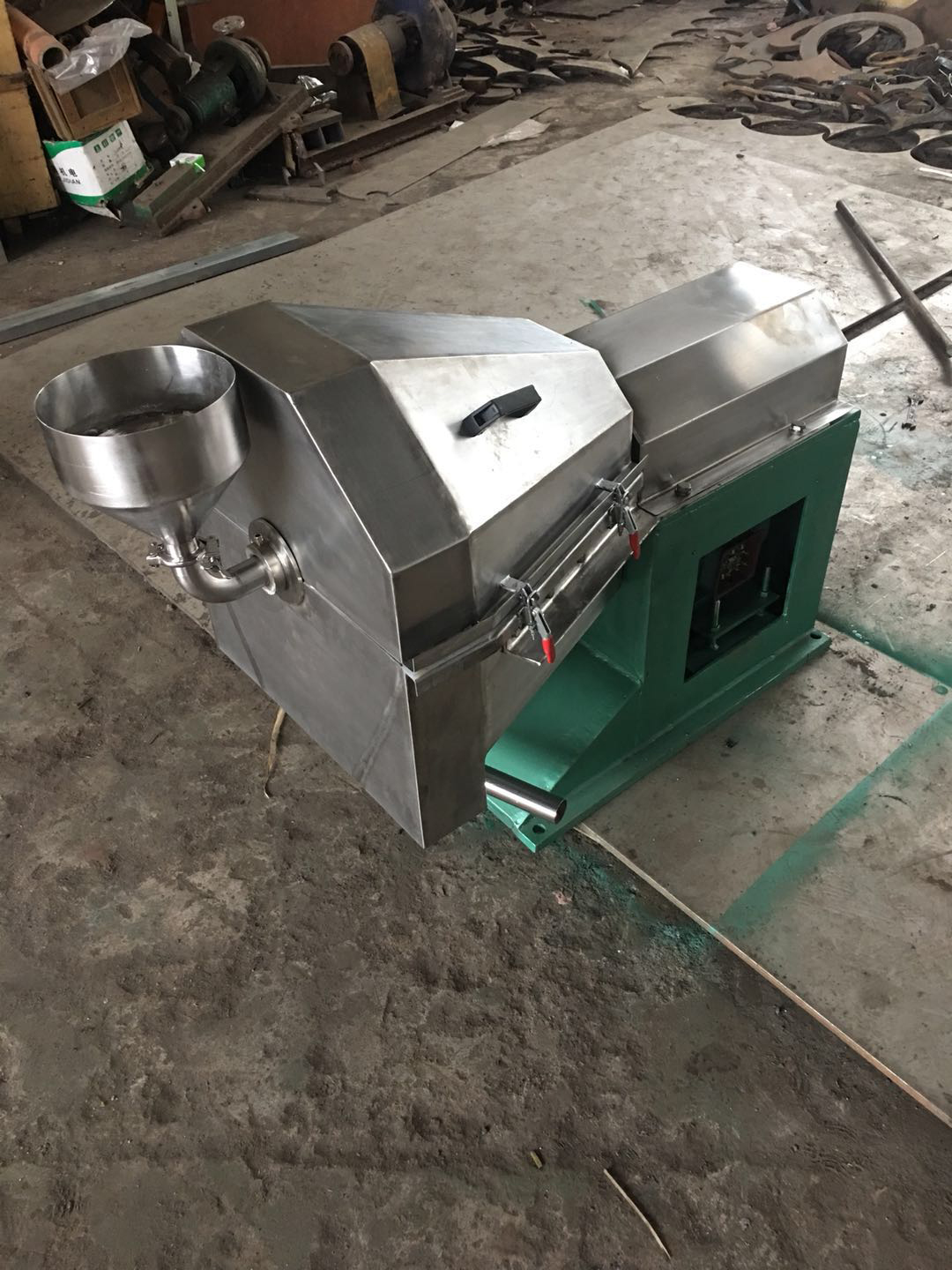

Product picture
Working principle
The main working part of the machine is cone shape. It will produce strong centrifugal force by high speed rotation to realize filtering and separating.
Advantage
The screen size is customized according to the customer’ requirement. It is easy to change filter screen.
