product details

Product description

Product Introduction:

*The machine body is made of 304 stainless steel plate, the chain bearings are all made of 304 material, the brush rollers are made of high-strength nylon filament, and the egg rollers are made of POM material. It can wash fresh eggs, salted eggs, mud-cured eggs, sesame paste eggs, preserved eggs, etc. It is corrosion-resistant, aesthetically pleasing, and practical. Professionally designed, all parts are reinforced for high durability and easy operation. The chicken/duck egg washing machine (egg washing machine) processes eggs with no surface dirt, resulting in a glossy, uniform appearance. Connecting to the packaging section makes it simpler and faster. Design modifications can also be made according to user requirements to meet specific processing needs. This equipment is suitable for large, medium, and small-scale egg processing businesses.

*Duck egg washing machine processing capacity: High processing capacity, variable frequency speed control; the number of eggs washed per hour depends on the equipment specifications. Processed eggs have a clean, glossy surface and can be integrated with other equipment.

*Duck egg washing machine processing capacity: Strong processing capacity, variable frequency speed control; the number of eggs washed per hour depends on the equipment specifications. Processed eggs have a glossy, dirt-free surface and can be integrated with other equipment.

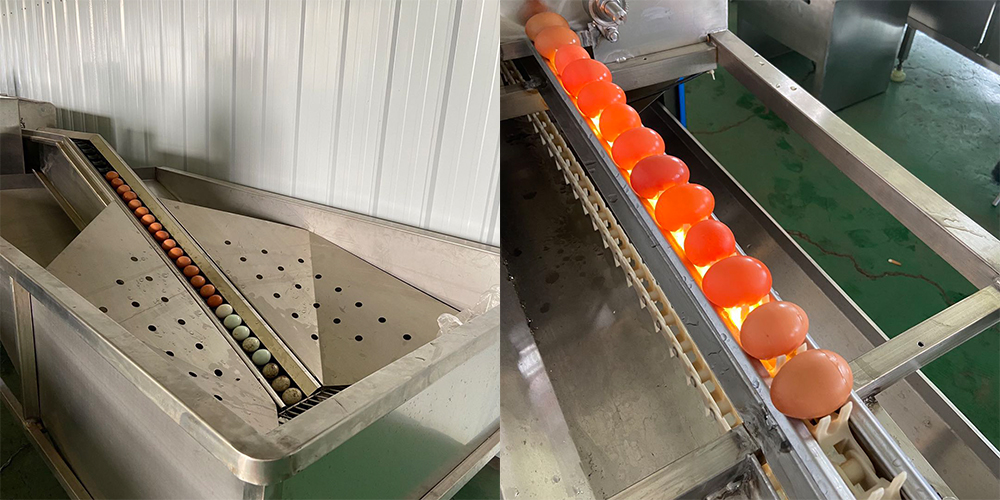

* Eggs are manually poured into a water tank. Under the action of conveyor rollers, the eggs are systematically fed into a brush roller, where they are thoroughly washed. Cleaned eggs are then conveyed out from the discharge end, while defective eggs are removed. Qualified eggs are conveyed onto a conveyor belt and, depending on requirements, to a packaging machine or a fully automatic egg yolk and egg white separation device for subsequent processing.

Equipment Components:

1. Water Tank: Made of 304 stainless steel, corrosion-resistant, easy to clean, and durable.


2. Egg Conveying Frame: Made of 304 stainless steel, corrosion-resistant, high strength, and not easily deformed, maintaining good working condition.


3. Egg Loading Rollers: Made of a corrosion-resistant, soft material, they do not damage the eggs and increase friction for even egg loading, ensuring standardized and uniform production.


4. Egg Loading Chain: Made of thickened 304 stainless steel chain plates, corrosion-resistant, high strength, and not easily deformed.


5. Cleaning Brush: Made with special abrasion-resistant curved bristles, offering high wear resistance and excellent elasticity, effectively removing stains from the eggshell surface. The shaft is made of stainless steel, resistant to corrosion.


6. Frame: Available in two types: bent steel plate and square tubing. The bent steel plate frame is modularly assembled, weld-free, less prone to deformation, rust-free, and stronger. Modular assembly is the default unless otherwise specified.

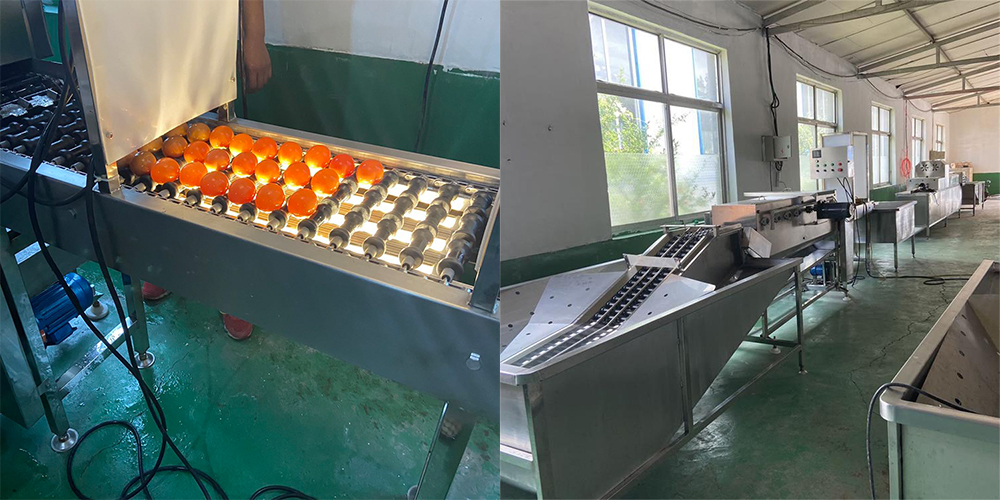

7. Optical Inspection: Non-destructive testing of the internal quality of eggs is an indispensable part of egg processing. Utilizing a professional LED cold light source emanating from the bottom of the egg, it allows manual removal of eggs with cracks, broken yolks, deformities, or sandy shells.


8. Conveyor Belt: Food-grade PVC conveyor belt.


9. Motor: Anhui South dual-output motor.

10. Suitable for cleaning chicken eggs, duck eggs, etc. This machine is specially designed with 304 stainless steel, featuring a simple structure, easy operation, stable running, and long service life. It cleans thoroughly and quickly without damaging the eggs.

Product parameter

Single-row Egg and Duck Egg Washing Machine

Processing Capacity: 5000-7000 eggs/hour

Dimensions: 8000*1100*1500mm

Power: 2kW

Voltage: 380V

Double-row Egg and Duck Egg Washing Machine

Processing Capacity: 10000-14000 eggs/hour

Dimensions: 8000*1600*1500mm

Power: 4kW

Voltage: 380V

Triple-row Egg Washing Machine

Processing Capacity: 12000-15000 eggs/hour

Dimensions: 7000*1300*1800mm

Power: 2.5kW

Voltage: 380V
