Product description

Working process:

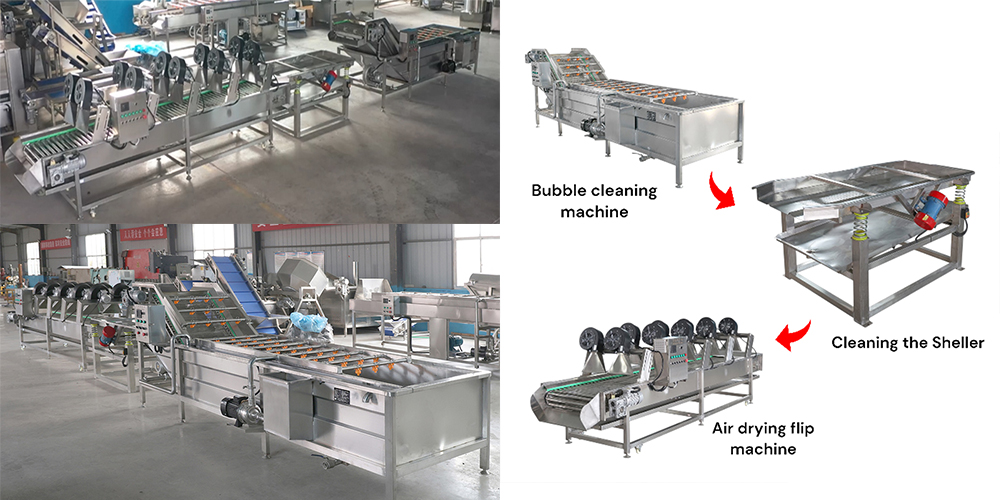

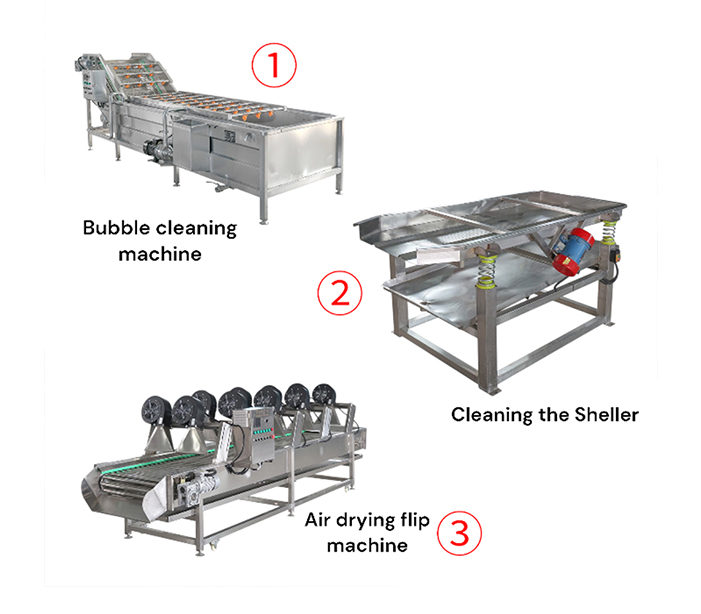

Air bubble washing machine→ fruit and vegetable slicer → Air drying flip machine

Introduction:

The high-speed mechanized production line can be used for cutting, washing, peeling, blanching, frying and other processing of raw fruits and vegetables. This production line has the characteristics of high production efficiency, stable product quality, diversified production links, relatively simple maintenance, safe and reliable equipment, etc.

Product parameter

①Air bubble fruit vegetable washing machine

This air bubble washing machine mainly washes the fruit vegetables by air bubble, surfing and spraying three washing methods.

Feature:

1. This machine is suitable thin skin fruit and vegetables washing and cleaning, such as leaf vegetable, tomato, grape, berry, cherry tomato, goji, blueberry, strawberry, etc.

2. air bubble washing machine：a variety of washing type to clean vegetables and fruits, it can remove not only the dirt but also the pesticide residue.

3. this machine is equipped with air bubble generating device, goods will roll over when going through case body in the combined impact of air bubble and water

4. Floating sundries will overflow from overflow channel and the sediment will discharge from outlet.

②Vibrating screen sheller

Feature:

1. This machine is suitable for both mung bean sprout and soybean sprout

2. Labor saving, 1 or 2 workers are enough to operate the machine.

3. Electric saving and no needing water.

4. There is no harm to the bean sprout

5. This machine is suitable for different sizes of bean sprout

6. Double layer screens and double assurance

7. This machine is made of stainless steel 304.

③Air drying flip machine

1. The entire equipment is made of SUS304 stainless steel.

2. Equipment dimensions: 4500*900*1200mm.

3. The equipment uses vortex blowers equipped with air knives; the blower height is adjustable.

4. The equipment uses SUS304 stainless steel woven mesh belt.

5. The equipment can rotate 4 times.

6. A water collection tray is provided at the bottom of the equipment.

7. The equipment is equipped with 10 vortex blowers, each with a power of 0.75kw.

8. The equipment's conveyor motor has a power of 2.2kw. It is an adjustable speed motor.

9. The equipment operates on 380V.

10. The equipment is equipped with an independent power distribution box. Button control.

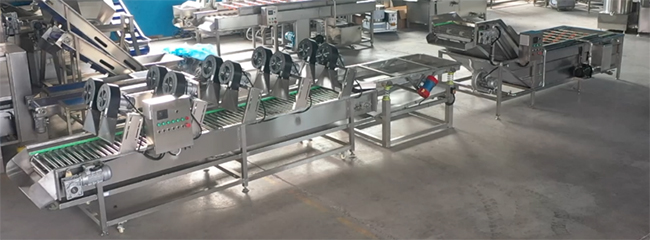

Product picture
