Onion dry peeling machine
Onion dry peeling machine
Product application and usage:

The garlic peeler takes the air compressor as the production power, and controls the procedures of feeding, peeling and discharging through the principles of electricity and air, so as to realize full automation and continuous work, greatly reducing the labor intensity.

  • Model: TPP-YC500B
  • Capacity: 300-500kg/h
  • Voltage: 0.6kw/380V50HZ,3phases
  • Material: ss304
  • Dimension: 1440*600*1340mm
  • Weight: 145kg
  • Product description


    Onion dry peeling machine

    *The garlic peeler takes the air compressor as the production power, and controls the procedures of feeding, peeling and discharging through the principles of electricity and air, so as to realize full automation and continuous work, greatly reducing the labor intensity. Best-selling domestic market, exported to Southeast Asia, South America, North Africa, the Middle East international market, praised by the majority of users.

    *Suitable onions with a diameter of 5-15cm can be used.


    Product parameter


    Model

    TPP-YC500B

    Capacity

    300-500kg/h

    Power

    0.6kw/380V50HZ,3phases

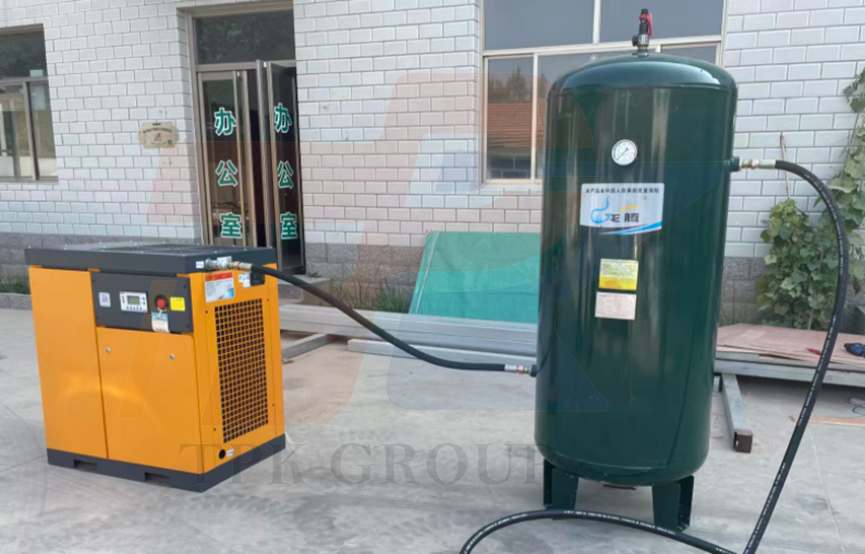

    Matched   air compressor

    30kw   (prepared by the buyer himself)

    Air   pressure

    0.8MPa

    Dimension

    1440*600*1340mm

    Weight

    145kg

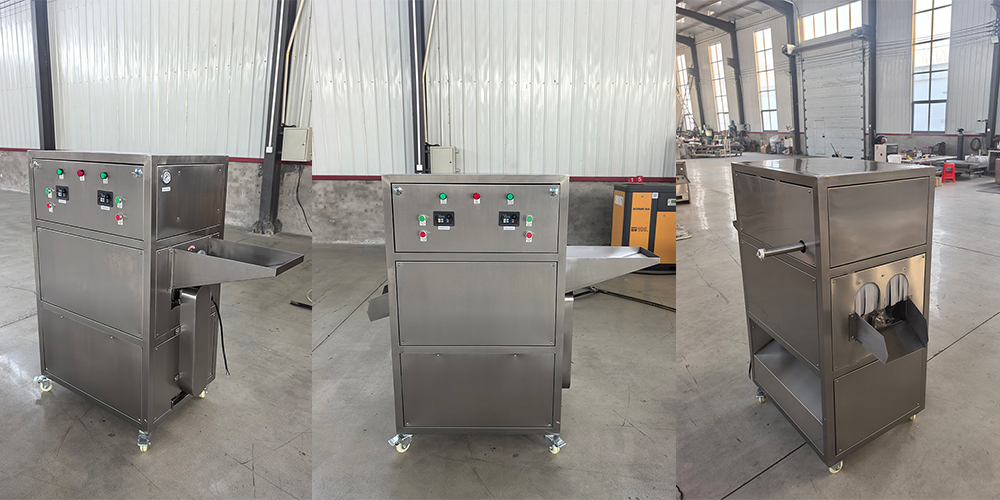

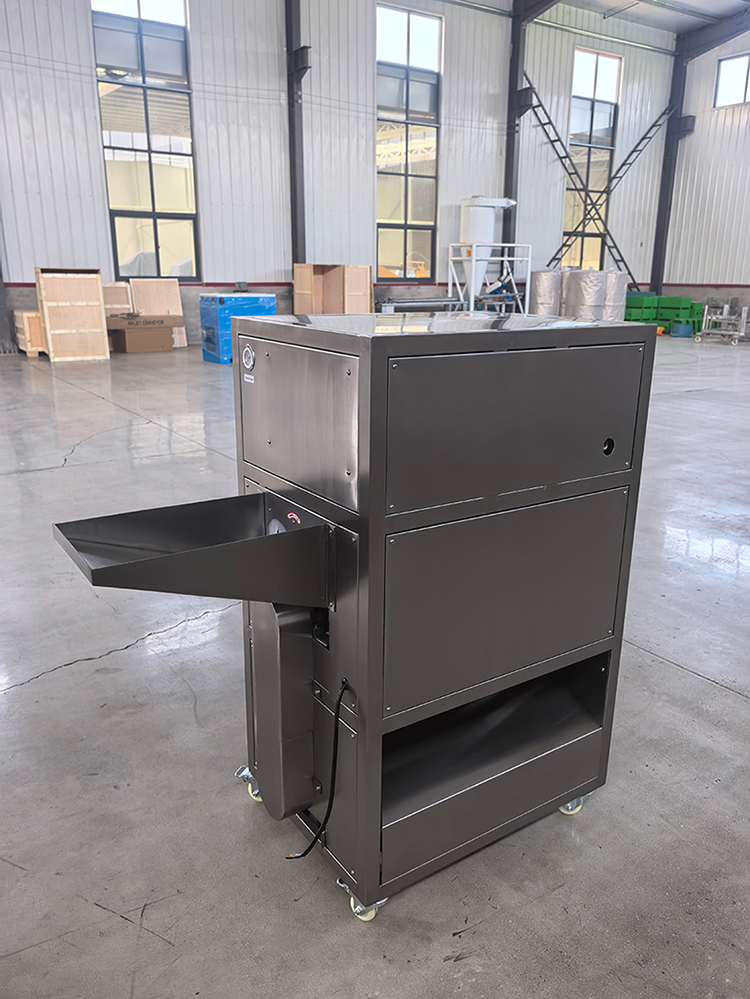

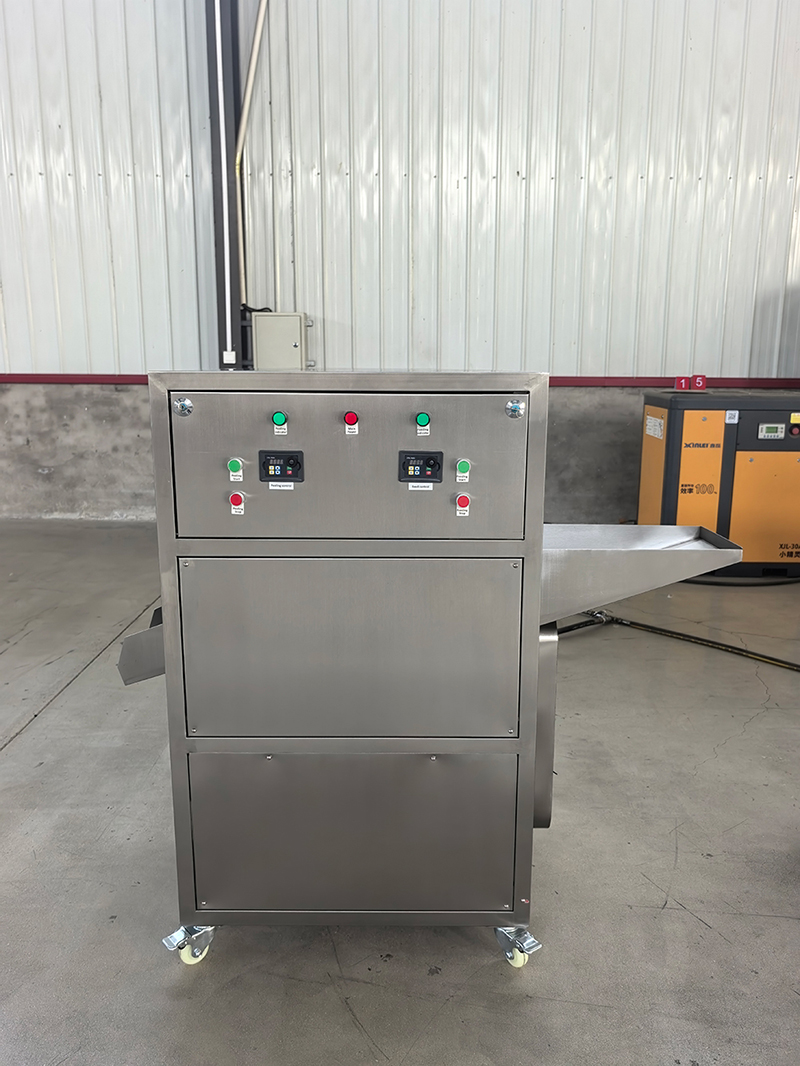

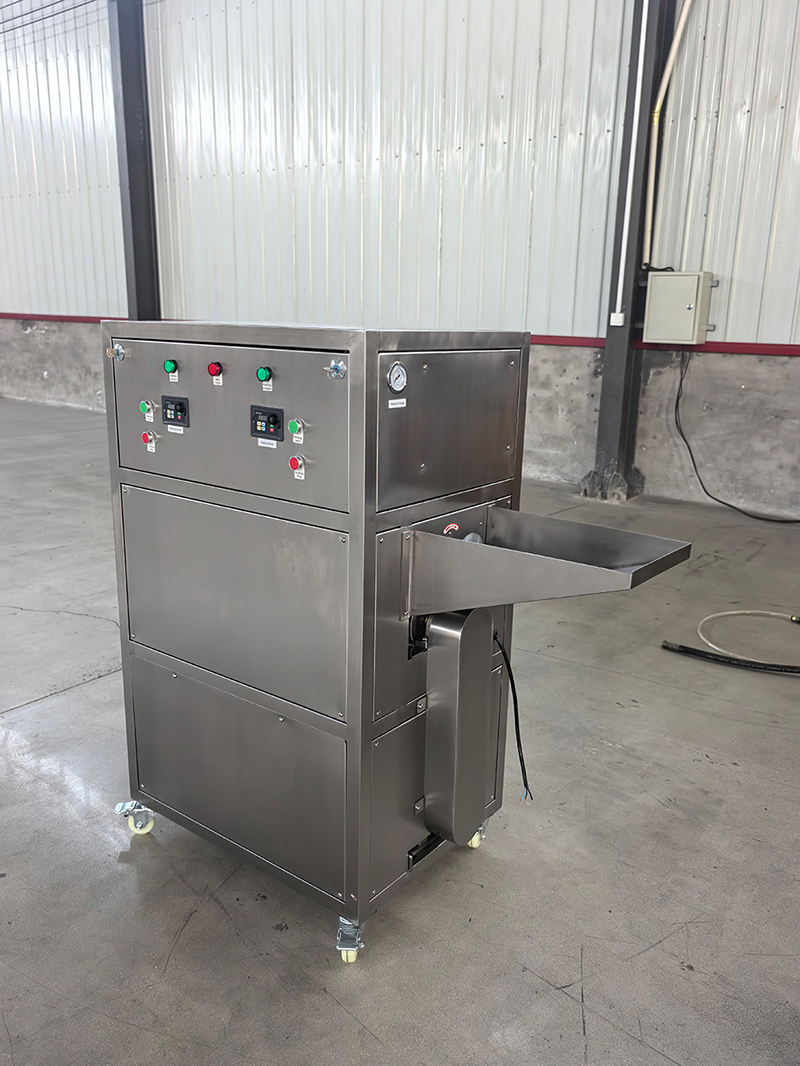

    Product picture






    Product advantage


    Product advantages:

    Different from the old model, the old model is fed down through the silo, and the onions are peeled in batches. The new model is fed in parallel from the silo, and the onions are peeled directly in the conveying process, which is faster, reduces the collision in the peeling process, reduces the collision, and has faster processing speed. Because a single onion is peeled under pressure, the peeling rate is also higher.

    1. The removal rate is higher than or equal to 99%.

    2, dry peeling, no water, no pollution to the environment.

    3, no damage to garlic

    4, in the peeling process, it is not limited by the size of onion, and the size is removed at one time.

    5, compact structure, small floor space, all stainless steel.

    6. Stable performance, practicality, safety, easy maintenance and simple operation.

    Note: When peeling, the effect of cutting roots and tails of onions in advance is better and the yield is higher.
